Electron Beam Welding

Overview

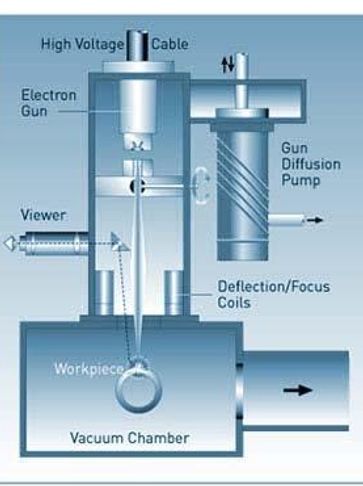

Electron Beam Welding (EBW) is a fusion welding process that uses a beam of high-velocity electrons to melt and join materials. This technology is known for its precision and efficiency, making it suitable for a variety of applications in industries such as aerospace, automotive, and manufacturing.



Advantages



  1. High Welding Speed: EBW enables faster welding processes, which can enhance productivity.
  2. Minimal Heat-Affected Zone: This leads to reduced distortion and improves the integrity of the surrounding material.
  3. Ability to Weld Thick Materials: EBW is particularly effective for joining thick sections and dissimilar metals.
  4. Deep Penetration and Strong Welds: The high energy density of the electron beam results in robust and durable welds.
  5. Less Filler Material: Compared to MIG/TIG welding, EBW often requires less filler material, reducing costs and material waste.

Disadvantages



  1. High Initial Cost: The upfront investment can be a barrier for smaller operations or those with limited budgets.
  2. Vacuum Requirement: EBW typically requires a vacuum environment, which can complicate setup and operation.
  3. Limited Material Compatibility: EBW may not be suitable for all materials, restricting its versatility.
  4. Skilled Operators Required: The process demands a high level of skill and training to avoid defects, which can increase labor costs.
  5. Skilled Maintenance : Machine downtime can be significant and costly if you do not have in-house engineers with electronic, mechanical, and computer backgrounds.

Weld Solutions Takeaway


For many years e.b. welding was the "cadillac" of welding processes. If your part calls out e.b. aerospace welding spec AMS 2660 or AMS 2681, you will have a difficult time changing that. Otherwise, lasers have become more efficient and new laser technology has allowed deep penetration without cracks or voids. If you need e.b., consider a low voltage (60KV) system. The vacuum chambers do not require lead shielding and the high voltage tanks are small and manageable. Not to mention you can typically buy a low voltage system for $300,000-$800,000, where a high voltage system can cost millions.
