WSW-200 Laser Tacker / Welder

Laser Tacker specifically designed for Jewelry, and adapted for Aerospace assemblies and Medical device parts

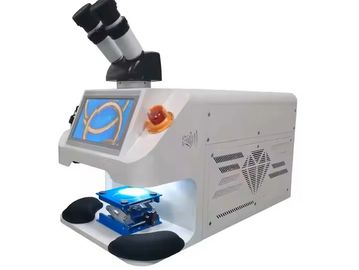

WSW-200 Base Unit

$9,500

Machine model WSW 200
Max. avg power 200W
Laser type Nd.YAG
Laser wavelength 1064nm
Pulse width 0.1-10ms
Frequency 1-20Hz
Spot adjust range 0.2-3.0mm
Observation system CCD camera +HD microscope
Internal water cooling

Included

Hexagon wrench
· SPP10 plug head
· A4 black paper ( For calibration)
· M10 water pipe
· M6 argon pipe

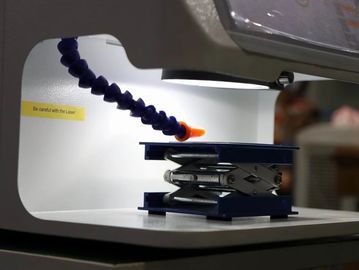

· Small working lift table
· Hand help mat
· 1 spare xenon lamp (installed)
· 1 cover glass (installed)
· Instruction manual / video

Specifications

Protective gas Nitrogen gas or argon gas
Gas pressure 0.05Mpa-0.1Mpa
Power supply 220V, single phase,50HZ/60Hz
Voice AI voice

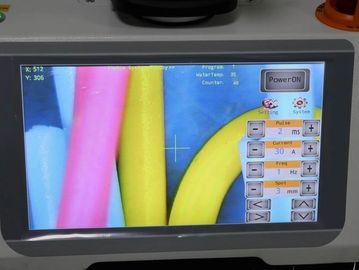

Touch screen size 10.8 inches
Machine size 24x14x11.5in (608*350*290mm)
Weight 84lbs (38Kg)

Add-On Options

Accessories for your laser welder

Transformer

$450

A step-down transformer converts 220 V AC input to 100 V AC output, making your welded compatible with U.S. style power systems.

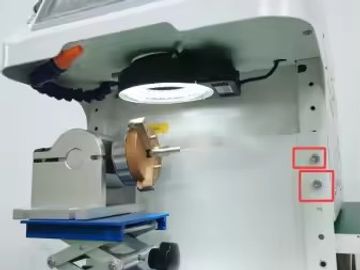

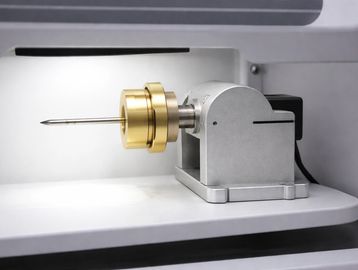

65 mm Tilt rotary

$750

Everything you need to automate the motion if your application cannot be done manually. Comes with motion control software to integrate to the WSW-200.

Chiller

$750

Typically not required, but if you are running continuous duty cycle throughout the day, especially in warmer environments, this chiller will assure continuous up-time without overheating delays.

Spare Xenon Lamps

$295/each or 3/$450

One days training by an expert user of the WSW-200. Included application development and all travel in the continental US. Additional days can be added. Email us for a specific plan.

Cover glass

10/$150

Keep your laser lens clean and maximum laser power output. Replacement frequency depends on materials, power, and application. Typical applications require replacement every 1-3 months.

Production Bundle

$1,900

Everything you need to run production. without concern for 1-5 years.

5 Xenon Lamps
25 cover glass
Tilt rotary
Transformer
Over $3,000 separately
(Chiller not included)

Training / Consultation

Get trained by the best

Hands-on training

$4,500/day

Training is conducted on site by a senior technician with decades of hands on industry experience. You will learn system operation, preventative maintenance, safety practices, weld techniques, and process development so your team can confidently transition into production.

The technician works directly with your staff to develop parameters specific to your application, materials, and quality requirements, ensuring when he leaves you are fully prepared to run parts.

Documentation / Quality Consulting

$275/hr

A critical requirement of every engagement is thorough, professional documentation. This may include Scope of Work (SOW) packages, work instructions, travelers, shop procedures, and additions to your operations or maintenance manuals.

Our consultant will work directly with your production and quality teams to ensure this documentation reflects real shop floor practices, customer requirements, and regulatory expectations, creating processes that are practical, auditable, and repeatable.

Additional travel expenses will be billed at cost.
